Our Capabilities

Features Capability Notes Patterns
Count 1, 2 layers

The number of copper layers in the board.

Material FR-4,Aluminium (MCPCB) , CEM-1

FR-4 Standard Tg 130–140° / Tg 155.

Material
Dielectric Constant 4.5 (double-sided PCB)
7628 Prepreg 4.6
3313 Prepreg 4.05
2116 Prepreg 4.25
Max. Dimension 400×500mm

The maximum dimension PCB can accept.

Max. Dimension
Dimension Tolerance ±0.2mm

±0.2mm for CNC routing, ±0.4mm for V-scoring.

Board Thickness 0.4 / 0.6 / 0.8 / 1.0 / 1.2 / 1.6 / 2.0mm

The thickness of finished board.

Board Thickness
Thickness Tolerance (≥1.0mm) ±10%

e.g. For the 1.6mm board thickness, the finished board thickness ranges from 1.44mm(T-1.6×10%) to 1.76mm(T+1.6×10%)

Thickness Tolerance (Thickness<1.0mm)< /td> ± 0.1mm

e.g. For the 0.8mm board thickness, the finished board thickness ranges from 0.7mm(T-0.1) to 0.9mm(T+0.1).

Finished Outer Layer Copper 1 oz / 2 oz (35µm / 70µm)

Finished copper weight of outer layer is 1oz or 2oz.

Finished Outer Layer Copper
Finished Inner Layer Copper 0.5 oz (17.5µm)

Finished copper weight of inner layer is 0.5oz by default.

Finished Inner Layer Copper

Features Capability Notes Patterns
Drill Hole Size 0.20mm- 6.30mm

Min. drill size is 0.20mm. Max. drill size is 6.30mm.

Drill Hole Size
Drill Hole Size Tolerance +0.13/-0.08mm

e.g. for the 0.6mm hole size, the finished hole size between 0.52mm to 0.73mm is acceptable.

Blind/Buried Vias Don’t support

Currently we don’t support Blind/Buried Vias, only make through holes.

Blind/Buried Vias
Min. Via hole size 0.2mm

For Single&Double Layer PCB, the minimum via hole size is 0.3mm;For Multi Layer PCB, the minimum via hole size is 0.2mm

Min. Via hole size
Min. Via diameter 0.4mm

For Single&Double Layer PCB, the minimum Via diameter is 0.5mm; For Multi Layer PCB, the minimum via diameter is 0.45mm(Limitation 0.4mm).

Min. Via diameter
PTH hole Size 0.20mm – 6.35mm

The annular ring size will be enlarged to 0.15mm in production.

PTH hole Size
Pad Size Minimum 1.0mm

The pad size will be enlarged by 0.5mm than the hole size. The minimum size of annular ring around plated through hole pads is 0.25mm. If the recommended sizes are not respected then the pad will not be produced properly.

Pad Size
Min. Non-plated holes 0.50mm

The minimum NPTH dimension is 0.50mm, Please add the NPTH in the mechanical layer or keep out layer.

Min. Non-plated holes
NPTH 0.2mm

We make NPTH via dry sealing film process, if customer would like a NPTH but around with pad/copper, our engineer will dig out around pad/copper about 0.2mm-0.25mm, otherwise the metal potion will be flowed into the hole and it becomes a PTH. (there will be no copper dig out optimization for single board).

NPTH
Min. Plated Slots 0.5mm

The minimum plated slot width is 0.5mm, which is drawn with a pad.

Min. Plated Slots
Min. Non-Plated Slots 1.0mm

The minimum Non-Plated Slot Width is 1.0mm, please draw the slot outline in the mechanical layer(GML or GKO)

Min. Non-Plated Slots
Min. Castellated Holes 0.60mm

The minimum diameter of castellated holes is 0.60mm.

Min. Castellated Holes
Hole size Tolerance (Plated) +0.13mm/-0.08mm

e.g. for the 1.00mm Plated hole, the finished hole size between 0.92mm to 1.13mm is acceptable.

Hole size Tolerance (Plated)
Hole size Tolerance (Non-Plated) ±0.2mm

e.g. for the 1.00mm Non-Plated hole, the finished hole size between 0.80mm to 1.20mm is acceptable.

Hole size Tolerance (Non-Plated)

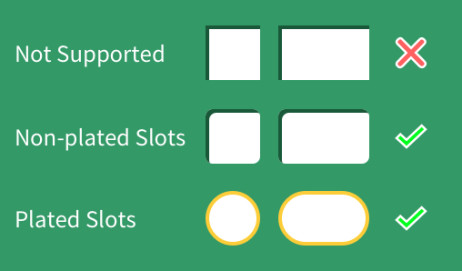

Rectangle Hole/Slot Don’t support

Rectangle/Square Slots, we don’t make rectangular or square plated holes,only make oval or round plated slots. For non-plated slots, rounded corner-rectangular or square slots are supported. The recommended minimum size is 3x3mm.

Rectangle Hole/Slot

Features Capability Notes Patterns
1oz Copper 0.13mm

0.3mm

2oz Copper 0.2mm

0.3mm

2oz Copper

Features Capability Patterns
Hole to hole clearance(Different nets) 0.5mm
Via to Via clearance(Same nets) 0.254mm Via to Via clearance(Same nets)
Pad to Pad clearance(Pad without hole, Different nets) 0.127mm Pad to Pad clearance(Pad without hole, Different nets)
Pad to Pad clearance(Pad with hole, Different nets) 0.5mm Pad to Pad clearance(Pad with hole, Different nets)
Via to Track 0.254mm Via to Track
PTH to Track 0.33mm PTH to Track
NPTH to Track 0.254mm NPTH to Track
Pad to Track 0.2mm Pad to Track

Min. Trace width Min. Spacing Patterns
1-2 Layers 5mil (0.127mm) 5mil (0.127mm)
4-6 Layers 3.5mil (0.09mm) 3.5mil (0.09mm)
2oz Copper weight 8mil (0.2mm) 8mil (0.2mm)

Layer count Min. BGA Pad Dimensions Min. Distance Between BGA Patterns
1/2 layers 0.25 mm 0.127mm
4/6 layers 0.25 mm 0.127mm

Features Capability Notes Patterns
Solder mask opening/ expansion 0.05mm

The solder mask should have a minimum of a 0.05 mm “growth/mask opening” around the pad to allow for any mis-registration.

Solder mask opening/ expansion
Solder bridge 0.2mm(green) 0.254mm(other colors)

To have solder mask bridge, the spacing between copper pads edge must be 0.2mm (8mils) or more.

Solder mask color green, red, yellow, blue, white, and black.

We use LPI (Liquid Photo Imageable) solder mask. It is the most common type of mask used today.

Solder mask color
Solder mask dielectric constant 3.8
Solder mask thickness 10-15UM

Features Capability Notes Patterns
Minimum Line Width 6 mil (0.153mm)

Characters width less than 6mil(0.153mm) will be unidentifiable.

Minimum Line Width
Minimum text height 40 mil (1.0mm)

Characters height less than 40 mil(1.0mm) will be unidentifiable.

Minimum text height
Character width to height ratio 1:6

The preferred ratio of width to height is 1:6.

Character width to height ratio
Hollow-carved Character width to height ratio 1:6

The preferred ratio of width to height is 1:6

Hollow-carved Character width to height ratio
Pad To Silkscreen 0.15mm

The Minimum Distance Between Pad and Silkscreen is 0.15mm.

Pad To Silkscreen

Features Capability Notes Patterns
Trace to Outline 0.2mm

Ships as individual board(Rounting):Trace to Outline≥0.2mm

Trace to Outline
Trace to V-cut line 0.4mm

Ship as panel with V-scoring: Trace to V-cut line≥0.4mm

Trace to V-cut line

Features Capability Notes Patterns
Panelization without space 0mm

The space between boards is 0mm.

Panelization without space
Panelization with space 2mm

Make sure the space between boards should be ≥2mm,otherwise it will be hard to process for rounding.

Panelization with space
Panelized Round board ≥20mmx20mm

The single round board size should be≥20mmx20mm. Panelize with stamp holes and add tooling strips on four board edges

Panelized Round board
Panelized castellated holes board Panelize with stamp holes and add tooling strips on four board edges

The distance between castellated hole and board corner should be larger than 2mm. Recommended diameter of stamp hole is 0.5mm-0.8mm; Recommended distance between the two stamp holes is 0.2-0.3mm

Panelized castellated holes board
Min. Width of Breakaway Tab 4mm

The minimum width of breakaway tab is 4mm. For breakaway with mouse-bites, the minimum width is 5mm.

Min. Width of Breakaway Tab
Min. Edge Rails 3mm

If choosing panel by PCB, we will add 5mm edge rails on both sides by default.

Min. Edge Rails
